Samsung Dryer Door Switch Replacement Guide

The Door Switch Fails Mechanically, Not Electrically

Most Samsung dryers that won’t start unless the door’s shut tight have a worn door switch, not a deeper electrical fault — the same wear pattern I’ve chased on aircraft micro switches over 19 years of Air Force maintenance work. Inside the small plastic housing sits a spring-loaded lever and a pair of contacts, and years of the door swinging shut against it eventually crack the lever or pit the contacts until they stop making a clean connection. The control board never gets the signal that the door is closed, so it won’t fire the motor or the heater — the same broad symptom covered in the Dryer Will Not Start troubleshooting guide. The catch almost everyone misses: a dead switch usually still clicks fine — it’s just not closing the circuit anymore.

If your model flashes a fault code instead of sitting dead, check it against the Samsung dryer error code list — some boards flag a door problem specifically, others just refuse to start with a blank display.

The likely causes break down like this:

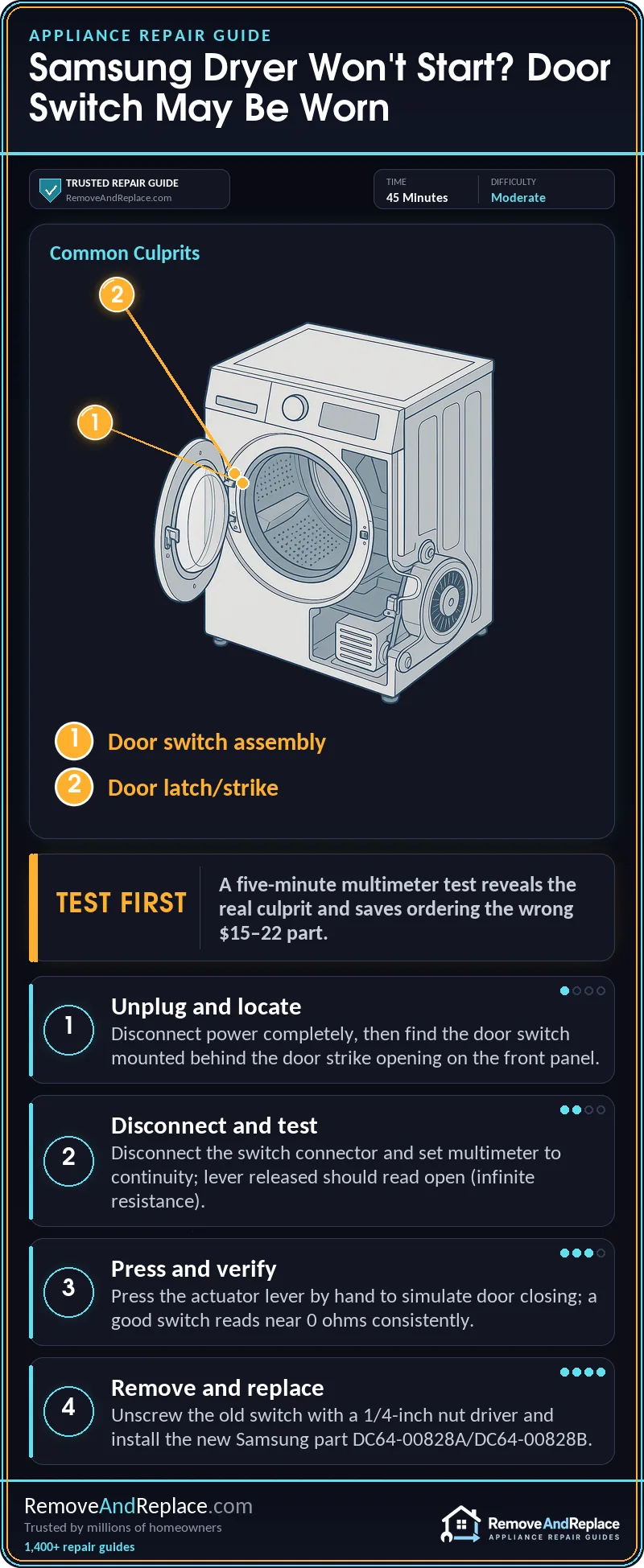

Test the Switch With a Multimeter Before You Buy Anything

This is the step almost every parts-retailer video skips over, and it’s the one that actually tells you what to order. My first instinct used to be replacing the switch and the latch together as a pair, just to be safe. I did that for years. Then I learned testing takes five minutes and, more often than not, only one of them is actually bad — no reason to buy both.

1. Unplug the dryer. Pull the actual plug, not just the power button — you don’t want stray voltage in the line while you’re disconnecting a connector.
2. Find the switch. It’s usually mounted right behind the door strike opening on the front panel, wired with a two- or three-wire connector.
3. Disconnect the connector from the switch terminals.
4. Set your multimeter to continuity or ohms.
5. Touch a probe to each terminal with the actuator released — the door “open” position — and you should read no continuity, infinite resistance.
6. Press the actuator lever by hand to simulate the door closing. You’re gonna hear a faint click when the lever’s pressed just right, but don’t rely on the sound alone — that’s kinda the whole point of testing with a meter instead of your ears. A good switch reads near 0 ohms every time you press it.

If the reading stays open no matter how you press the lever, or it flickers on and off as you wiggle it, the switch is bad — replace it. If it reads clean and consistent every single time, the switch is fine, and you’re looking at the latch or the wiring next. There’s a solid written walkthrough of this same test at AppliancePartsPros’ testing and replacement guide if you want a second set of photos to compare your readings against.

For a visual walkthrough of exactly where this switch sits and how the front panel comes apart, this video covers the same testing and swap I just described, start to finish.

Is It the Switch or the Door Latch on a Samsung Dryer?

Most Samsung front-load dryers — the DV42H, DV45H, and DV50 series that have been the volume sellers for well over a decade — use the same basic reversible side-swing door with a simple mechanical switch and a metal strike plate. The strike is the piece bolted to the door itself; it’s what physically depresses the switch lever when the door swings shut. On these models, a fair number of what looks like a switch failure is actually a bent or loose strike plate that isn’t pressing the lever far enough anymore — a couple of turns on the mounting screws, or swapping the strike plate itself (well under $20), fixes it with no front-panel teardown required.

Newer Smart Care Samsung dryers built since roughly 2021 quietly moved away from the purely mechanical switch on some trims. Instead of a spring lever and contacts, they use a small Hall-effect sensor built into the door frame that reads a magnet embedded in the door itself — no physical contact, and no continuity test the same way you just ran. I haven’t run into many of these fail yet, honestly, mostly because there’s nothing left to wear out mechanically. But if your continuity test above reads clean and the dryer still won’t recognize the door as closed, it’s worth checking whether the control panel is responding correctly before you assume it’s the sensor board — that’s the more likely culprit on these newer units, not the door safety switch you just tested.

Replacing the Door Switch, Step by Step

The wrong move here is prying at the corner of the front panel with a flathead screwdriver. Samsung’s tension clips release with a firm outward pull along the top edge, not prying at a corner, and that screwdriver trick is exactly how people crack the plastic tab and turn an $18 switch job into a $40+ panel replacement. I’ll say this plainly — the tension-clip design on these front panels is annoying every single time. Whoever engineered it never had to pop this panel a hundred times in the field.

Tools: a 1/4-inch nut driver and a plastic trim tool (skip anything metal near the clips). Budget about 45 minutes your first time through the whole process, testing included; once you’ve done it, it’s a 15-20 minute job.

1. Unplug the dryer and pull it out from the wall about 18 inches.
2. Remove the top panel screws — usually two, at the back corners — with the nut driver, then lift the top panel and prop it back.
3. Disconnect the door switch connector you already found during testing.
4. Release the front panel tension clips along the top edge with a firm outward pull (don’t pry at the corners), then swing the panel forward and set it aside.
5. Pull the old switch out of its mounting clip from behind the panel.
6. Snap in the new switch — Samsung part DC64-00828A or DC64-00828B, depending on your model year. You can find the correct one for your model on PartSelect’s door switch page.
7. Reconnect the connector, reseat the front panel until the clips click home, and reinstall the top panel and screws.
8. Plug the dryer back in and test it with the door closed.

Keeping the Door Switch From Failing Again

Every few months, wipe down the door gasket area and check that the strike plate screws haven’t backed out — a loose strike is what accelerates switch wear in the first place, since the lever gets pressed at a slightly wrong angle every time the door closes. If you pick up a fault code after the swap, run through the Samsung dryer error code reset guide to clear whatever the board latched onto during the failure — it doesn’t always clear itself just because the new switch is in.

Frequently Asked Questions

How do I tell a bad door switch from a blown thermal fuse?

A blown thermal fuse kills the dryer no matter what the door’s doing — no lights, no start, nothing, whether the door’s open or shut. A bad door switch is specific to the door itself: the dryer might light up and respond fine, it just won’t start until the door’s closed and latched properly. If yours behaves differently with the door open versus closed, I’d bet on the switch every time.

What’s the actual part number for a Samsung dryer door switch?

Most models use DC64-00828A or DC64-00828B — functionally the same switch under two different Samsung part numbers from different production runs. Cross-reference your model number before ordering (don’t ask me why manufacturers still split one switch into two part numbers); PartSelect and RepairClinic both list which one fits your specific dryer.

Can I test the dryer without the door switch connected at all?

You can bridge the connector briefly to confirm the rest of the circuit’s working, but I wouldn’t run a full cycle that way. The switch is also part of the safety interlock that’s supposed to stop the drum from spinning with the door open. Use it to confirm your diagnosis, then put a real switch back in before you actually dry anything (trust me, I’ve been fooled by this exact symptom more than once).

How long does a Samsung Dryer door switch Replacement actually take?

Your first time, budget a full 45 minutes, testing included. Once you’ve done it, it’s a 15 to 20 minute job, most of which is just the two top-panel screws.

Is this a repair a beginner can actually do?

Yes, honestly. It’s one of the easier appliance repairs there is — no gas, no refrigerant, nothing more dangerous than a wall outlet. The only real skill involved is not forcing the front panel clips, and that’s more patience than skill.

One Cheap Part, One Annoying Panel

This is one of the more satisfying repairs in the whole appliance world — cheap part, plain tools, and you’re done before a service tech would’ve even called you back. Just don’t skip the meter test to save five minutes. That’s the step people regret skipping, right before they order the wrong part.
