Whirlpool Front Loader F5 E2 Door Lock Error

A Whirlpool Front Load F5 E2 Error means the control board sent voltage to the door lock motor and never got confirmation the latch actually closed. It’s not automatically a broken part — close to half the time it’s something physically blocking the strike pin. Check for a stuck sock, coin, or bra underwire near the door boot before ordering anything, then unplug the washer for a full 5 minutes to clear the fault.

• The error almost always starts as a mechanical blockage, not an electrical failure — check the strike area first, before assuming the lock is dead.

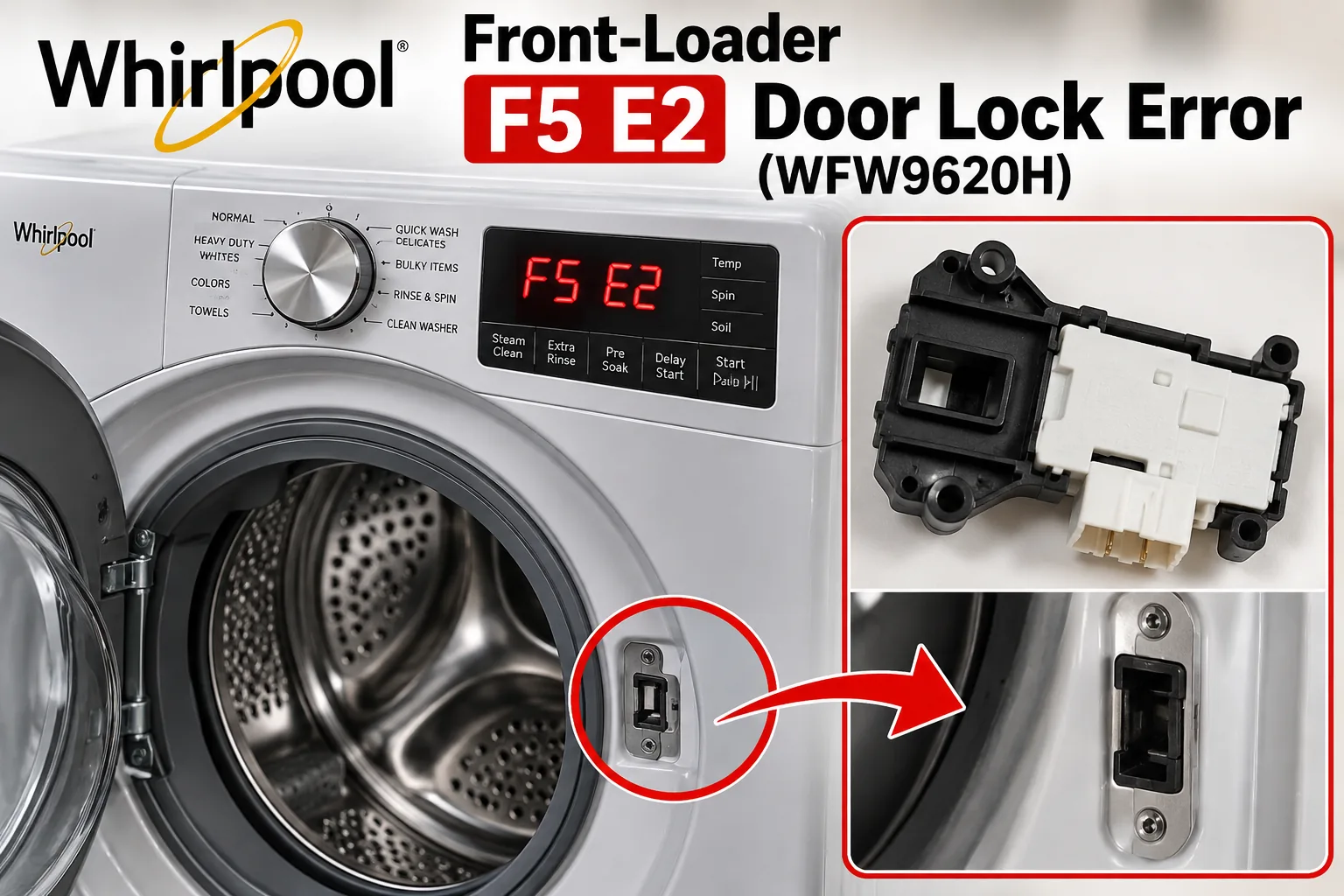

• The actual replacement part, Whirlpool’s WP8182634 door lock latch, runs $35-55 and covers most WFW-series machines built since around 2011.
• The washer won’t open up at all if the pressure sensor still thinks there’s standing water in the tub — clearing the code sometimes means draining first.
• A brand-new lock throwing the same code again is almost always a connector that didn’t fully reseat during install, not a defective part.

What a Whirlpool Front Load F5 E2 Error Actually Means

The Whirlpool front load error code chart lists F5 E2 as a door lock fault: the control board sends voltage to the door lock motor and never gets confirmation the latch closed. That’s the entire fault — it doesn’t mean the lock is broken, just that the circuit never closed, and I’ve run into this same false-lock-signal pattern on stacked commercial laundry machines going back through years of food service equipment repair work, so the front-loaders behave pretty much the same way. Most of the time something physical is blocking the strike pin; less often the lock assembly has failed internally, and rarer still it’s a bad connector or a control board that’s stopped reading the signal. Whirlpool’s own product help page tells you to check the door and power-cycle it — that’s step one, not the whole answer. If you’re working on a top-load Whirlpool instead, you want the F5 E3 lid lock error fix instead — different code, different mechanism, and parts get ordered wrong from this mix-up constantly.

This walks through checking the door strike for obstructions, testing the lock’s microswitch with a multimeter, and swapping the latch assembly if it fails the test. It’s a solid visual reference if you’d rather watch someone’s hands than read steps — I’ll cover the same process below with the specific terminal names and resistance behavior the video doesn’t get into.

Most of the Time, Something’s Just Blocking the Latch

Most Whirlpool Front Load F5 E2 Error cases trace back to a blocked door strike, not a failed lock — check for a stuck sock or coin before you buy any part. Open the door and run a finger around the rubber boot fold at the bottom of the opening, since that’s where small items get trapped without you noticing. Then check the strike pin on the door itself for anything bent, worn, or missing. On WFW96xx and Duet-era machines specifically, the plastic strike pin can shear clean off after enough hard door slams — not the lock failing, just a cracked pin that stops seating (I check this pin every time before I go near the lock assembly). If the pin looks fine and nothing’s in the way, wipe down the latch opening and do a full power cycle: unplug for a full 5 minutes, not 30 seconds. A quick unplug-and-replug doesn’t always clear the fault memory the way a full cycle does.

Is Slamming the Door Harder Actually Making This Worse?

Yes, and this is the wrong fix I see people try constantly. The code pops up, they figure the latch just isn’t “catching” hard enough, so they slam the door harder or lean into it with their shoulder. That’s backwards — slamming stresses the exact plastic strike pin that’s already prone to cracking, and it’s easy to turn a free fix into a $45 part swap by doing this for a week before checking anything else. If the door isn’t latching, close it gently and go look for an obstruction. Don’t add force.

The Whirlpool Front Load F5 E2 Error Is From a Failed Door Lock Assembly

If you’ve checked for obstructions and power-cycled and the code keeps coming right back, the door lock assembly itself has likely failed internally — usually the small motor that drives the latch pin, or the microswitch that reports the closed position back to the board. This is a real part swap, not a settings fix. The Whirlpool WP8182634 door lock latch runs $35-55 and is the correct part on most WFW-series machines built since around 2011 — if you’re comparing cross-brand options, the rundown on lid lock assembly parts that fit multiple brands is useful background, though the mechanism itself differs from a front-load door lock. Budget 30-40 minutes the first time you swap it:

1. Unplug the washer and pull it away from the wall for access.
2. Remove the boot band clamp holding the rubber door boot to the front tub panel — work it loose carefully so it doesn’t crack.
3. Fold the boot back to expose the latch assembly mounting screws.
4. Remove the three or four screws holding the latch to the tub front.
5. Unplug the connector from the old latch and set it aside.
6. Install the new latch, reconnect the connector, reseat the boot band clamp, and run a test cycle.

The second time you do this repair, it’s closer to 15 minutes.

The One Nobody Mentions: It Won’t Open up If It Still Senses Water

This is the edge case that trips people up after they’ve already fixed the actual lock problem. If the pressure sensor still thinks there’s standing water in the tub — even a false reading caused by a kinked drain hose or a partially clogged pump filter — the control board will refuse to release the door lock at all, and it’ll throw F5 E2 again with a brand-new latch installed. A clogged coin trap can be the real failure the whole time, and swapping the lock does nothing until the drain gets cleared. If a new lock still won’t release, drain the tub manually through the pump filter access panel before you assume the part is bad.

How to Test the Door Lock Solenoid With a Multimeter

Before you buy a new latch on a guess, a $15 multimeter confirms whether it’s actually bad in under five minutes.

1. Unplug the washer and pull it away from the wall enough to reach the connector.
2. Locate the door lock connector — it’s the 3- or 5-pin plug coming off the latch assembly, accessible either behind the front panel or through the boot band depending on model year.
3. Set your multimeter to continuity or ohms.
4. Test COM to NO with the door closed and latch engaged. You want continuity — a reading near 0 ohms, since the switch should read closed.
5. Test COM to NC with the door open. Same thing — you’re looking for continuity here too.
6. No continuity in either position, or a reading that jumps around when you wiggle the connector, means the switch or connector is bad. Replace the latch assembly.

A Loose or Corroded Connector After a Previous Repair

If F5 E2 comes back a week or two after you (or a tech) already replaced the door lock, check the connector before you blame the new part. This is one of the more common reasons a brand-new $45 latch throws the exact same code — the connector pins get pushed back slightly during reassembly and never fully seat, or there’s a bit of corrosion left on the pins from the old part. Unplug it, check the pins for green or white corrosion, and reseat it firmly until you feel it click.

Control Board Failure — Least Common, Most Expensive

The control board itself rarely causes this code, but when everything above checks out clean — no obstruction, a latch that tests good on the multimeter, a solid connector — the board’s door lock circuit can just fail to read the signal at all. I’d call a pro for this one. A new main control board runs $120-220 in parts alone, and if the diagnosis is wrong, that’s money spent with the same error still flashing.

Keeping F5 E2 From Coming Back

Once it’s fixed, keeping it fixed is boring work: check pockets before every wash, since that’s genuinely the number one recurring cause. Don’t force the door shut if it feels off — that resistance is usually the strike pin telling you something’s in the way. If you tend to overload the washer, that’s worth addressing too. An out-of-balance load can shift hard enough during spin to stress the door seal and strike pin over time, and that wear adds up.

Can I bypass the door lock to get my clothes out?

Not safely, and I wouldn’t recommend trying. Most Whirlpool front-loaders have a manual release cable or an emergency drain procedure behind the bottom kick panel — check your owner’s manual for that before you try prying the door itself.

Is F5 E2 the same as F5 E3?

No — F5 E2 (the Whirlpool Front Load F5 E2 Error) is the front-load door lock code, and F5 E3 is the top-load lid lock code. Parts get ordered wrong because of this mix-up often enough that it’s worth confirming which style washer you actually have first.

How much does a Whirlpool repair tech charge for this?

A service call plus the door lock swap typically runs $150-220 total, part included. Doing it yourself with a $45 latch saves you most of that.

Will unplugging the washer for 5 minutes actually clear the code?

Sometimes — if the fault was a one-time glitch, or if you already cleared whatever was blocking the latch. If the lock has actually failed internally, power-cycling won’t do anything and the code comes right back the next cycle.

Why does my new door lock still throw F5 E2?

Check the connector first. I covered this above — it’s one of the more common reasons a good part still throws the old code. Unplug it, look for corrosion, and reseat it firmly until it clicks.

Nine times out of ten this one’s a two-minute check, not a repair. Start there before you order anything.
