What does dE code mean on LG washing machine? Is your LG top load washer getting the dE error code? The dE error code on an LG washer is indicating the washer door was not able to properly lock the door. This signifies 3 different issues that may be causing the dE error code.
LG Washing Machine Error Code dE
How To Clear? – What To Check? – How To Fix/Repair?
LG Washer dE Error/Fault Code.

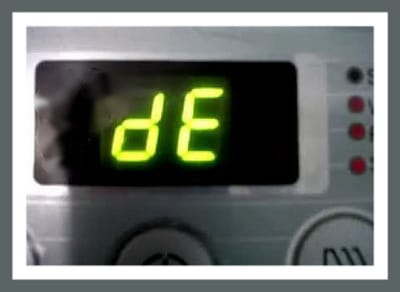

The dE code will look like this on the Washer’s Display Panel.
The LG Washer dE error code indicates the washer cannot lock the washer door.
Here are 3 reasons why the washer door was unable to lock:
– The door is not aligned properly.
– The washer door was not closed properly.
– The washer’s door latch may be faulty.
Here is what to check and clear the dE error code:
1 – Press the POWER button to turn washer OFF.
2 – Remove the washer from power.
3 – Press and hold the START/PAUSE button for 5 to 10 seconds.
4 – Apply power to the washer.
5 – Turn the unit back on by pressing the POWER button.
6 – Open and Close the washer door, making sure the door has latched.
7 – Select a wash cycle and press START/PAUSE to test the washer.
To be sure the dE error code does not come back:
– DO NOT put weight on the washer door when open.
– Pushing on the door when OPEN can BEND the door hinge therefore not letting it shut or close properly.
– The washer drum should not be packed with clothing which could cause the door out of alignment.
– Put clothing far into the washer drum so no parts of the clothing are trapped between the door and outside the door.
BENT WASHER DOOR HINGE?
Make sure the door is aligned properly and not bent. If the hinges on the washer door have been bent, you can try bending it back into position. If unable, you will need to install a new washer door hinge.
FAULTY WASHER DOOR LOCK ASSEMBLY?
If the door is shut properly and you continue to get the dE error code, you need to see if the wiring harness that go from the door latch to the control board are secure and not damaged. You may need to remove the door latch and check for damage and use a meter to be sure it is receiving power. If you suspect the LG washer door latch to be faulty, replace it.
LG WASHER DOOR LOCK SWITCH
LG washing machine door lock switch lock assembly parts
Have questions about LG washer getting the dE error code? Please leave a comment below and we can assist in troubleshooting.
Written by Keith Schneerer
Certified Appliance Tech · Founder, RemoveAndReplace.com
Keith has spent 30+ years repairing machines, starting as a military mechanic and later maintaining food processing equipment before moving into appliance repair. He founded RemoveAndReplace.com to share field-tested repair advice.
More about Keith →
Hello I have a WT5101HV with a de code I’ve changed out the door lock latch and still getting code I’ve done “reset” time after time and it will not reset I hear nothing from the lock at all!! What’s the issue? Please help
ZULFAKAR MOHAMMAD ZAIN,
Sounds as if the washer drain hose is positioned incorrectly.
Check this page for how to fix the washing machine water continuously flowing out of the drain pipe.
-RR
LG Model WF HX 200 GV – 20Kg direct drive inverter WASHING MACHINE, problem is water never stop filling and flows out the drain pipe. I had personally removed the drum and cleaned the interior. Water flows in and flows out. I had a new water level sensor replaced. What is the problem and how you assist?
I have a DE2 code, on my front loading all in one washer dryer. I’ve done the power off procedures, and even replaced the door lock. Still getting a DE2 code! what can I do next
Hi where is the door latch installed in top load LG Fuzzy Logic washing machine?
Only have had my front load a little over 6 months and have de code. Door won’t open locked tight. Have tried what was told to do for this several times. ( 8) but still no luck. What can I do now?
I have a DE1 code I have changed out the door lock with a new door lock mechanism the hinges are aligned but as soon as I turned on the power I do not hear 2 clicks at the door lock and I still have DE1 even after leaving on pluged for 10 minutes. Please help. Motherboard?
